| 详细参数 | |||
|---|---|---|---|
| 品牌 | Hummel | 型号 | 齐全 |
| 加工定制 | 否 | 材质 | 金属 |
| 耐温 | 耐高温型 | 阻燃性 | 一般 |
| 执行质量标准 | 欧标 | 产地 | 其他 |
| 颜色 | 其他 | ||
Hummel Circular connectors（Hummel圆形连接器）
Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）

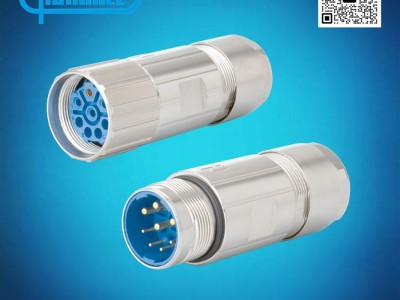

The classic M23 power connector covers a huge range of applications. With a power transmission up to 28A/630V,
this connection system can handle almost any challenge. The range includes numerous casing designs:

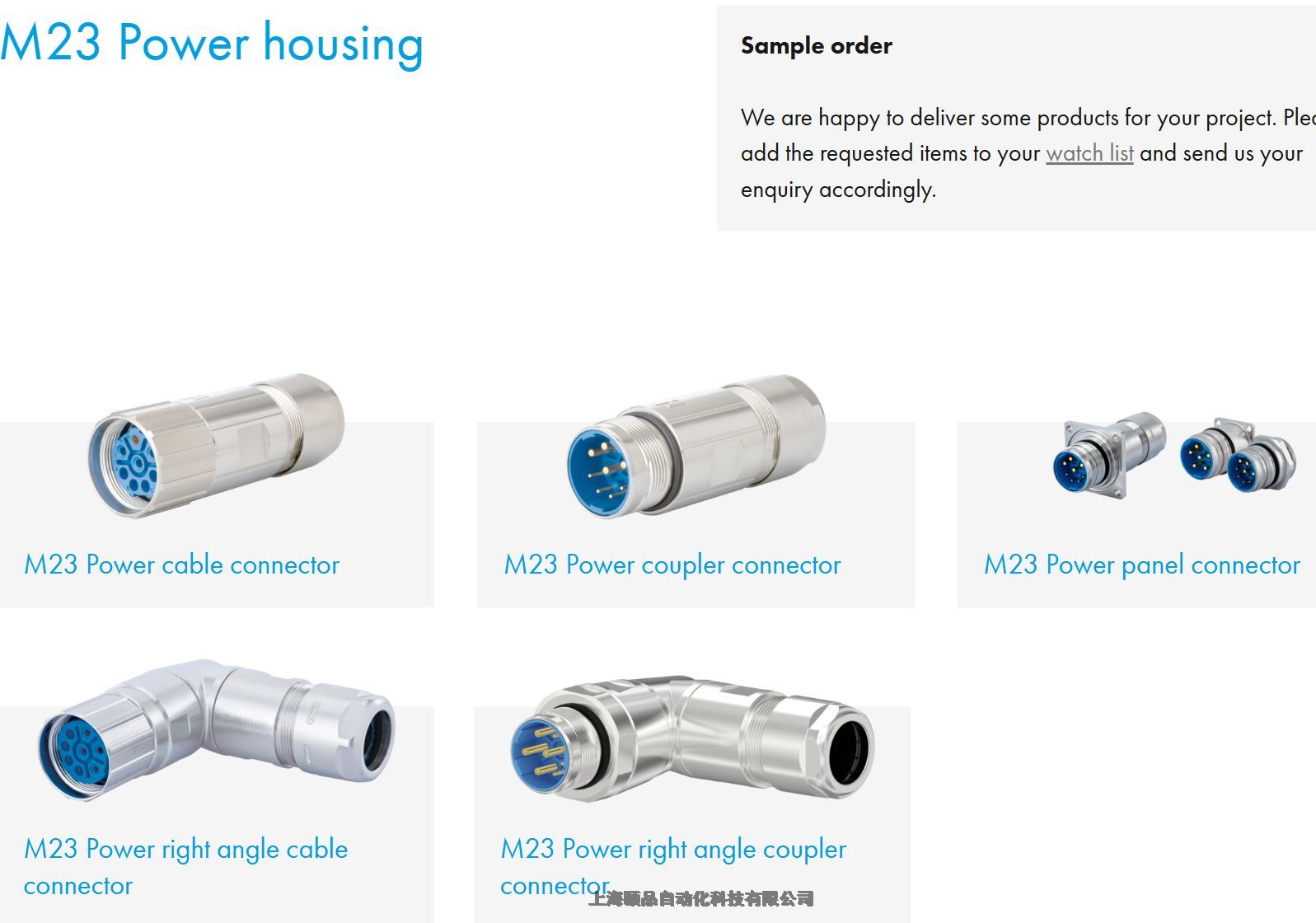

Cable connectors, coupling connectors, device connectors and angle connectors.
Available as screw plug, or with quick release.
| Housing type | Cable |
| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Material seals/o-rings | NBR |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| Version | Shield | Cable Ø | Item-No |
|---|---|---|---|
| Screw | shielded | 7 – 12 mm | 7.550.500.000 |
| Screw | shielded | 11 – 17 mm | 7.550.600.000 |
| TWILOCK | shielded | 7 – 12 mm | 7.556.500.000 |
| TWILOCK-S | shielded | 7 – 12 mm | 7.556.500.00S |
| TWILOCK | shielded | 11 – 17 mm | 7.556.600.000 |
| TWILOCK-S | shielded | 11 – 17 mm | 7.556.600.00S |
| Housing type | Coupler |
| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Material seals/o-rings |
FKM (FPM), NBR |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| Version | Shield | Cable Ø | Item-No |
|---|---|---|---|
| TWILOCK | shielded | 7 – 12 mm | 7.560.500.000 |
| TWILOCK | shielded | 11 – 17 mm | 7.560.600.000 |
| TWILOCK-S | shielded | 7 – 12 mm | 7.566.500.00S |
| TWILOCK-S | shielded | 11 – 17 mm | 7.566.600.00S |
| Housing type | Panel angled |
| Material housing |
Zinc Die Cast, brass, Copper-Zinc alloy |
| Material housing surface |
Nickel, blue passivated |
| Seal type | O-Ring |
| Material seals/o-rings |
FKM (FPM), NBR |
| Protection class |
IP 67, IP 69 K |
| Temperature range | -40°C to +125°C |
| Installation type | Version | Shield | Cable Ø | Item-No |
|---|---|---|---|---|
| Front wall | - | unshielded | - | 7.601.000.000 |
| Front wall | TWILOCK-S | unshielded | - | 7.601.000.00S |
| Front wall | TWILOCK-S | unshielded | - | 7.601.100.00S |
| Front wall | - | unshielded | - | 7.605.000.000 |
| Front wall | - | unshielded | - | 7.621.000.000 |
| Front wall | - | unshielded | - | 7.623.000.000 |
| Front wall | - | unshielded | - | 7.626.000.000 |
| - | right angled | unshielded | - | 7.635.000.000 |
| - | right angled | unshielded | - | 7.636.000.000 |
| - | right angled, TWILOCK | unshielded | - | 7.639.000.000 |
| - | right angled, TWILOCK-S | unshielded | - | 7.639.000.00S |
| - | right angled, TWILOCK | unshielded | - | 7.639.000.010 |
| - | right angled, TWILOCK | unshielded | - | 7.639.100.000 |
| - | right angled, TWILOCK-S | unshielded | - | 7.639.100.00S |
| - | right angled, TWILOCK | unshielded | - | 7.639.100.010 |
| Front wall | - | unshielded | - | 7.641.000.000 |
| Front wall | - | unshielded | - | 7.645.000.000 |
| Rear wall | - | unshielded | - | 7.651.000.000 |
| Rear wall | - | shielded | 7 – 12 mm | 7.653.500.000 |
| Rear wall | TWILOCK-S | shielded | 7 – 12 mm | 7.653.500.00S |
| Rear wall | - | shielded | 11 – 17 mm | 7.653.600.000 |
| Rear wall | TWILOCK-S | shielded | 11 – 17 mm | 7.653.600.00S |
| Rear wall | TWILOCK | unshielded | - | 7.661.000.000 |
| Front wall, Rear wall | - | shielded | 7 – 12 mm | 7.681.500.000 |
| Front wall, Rear wall | - | shielded | 11 – 17 mm | 7.681.600.000 |
| Front wall, Rear wall | - | shielded | 7 – 12 mm | 7.683.500.000 |
| Front wall, Rear wall | - | shielded | 11 – 17 mm | 7.683.600.000 |
| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Material seals/o-rings | NBR |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| Shield | Cable Ø | Item-No |
|---|---|---|
| shielded | 7 – 12 mm | 7.576.500.000 |
| shielded | 11 – 17 mm | 7.576.600.000 |
| Material housing |
brass, Zinc Die Cast |
| Material housing surface | Nickel |
| Material seals/o-rings | NBR |
| Temperature range | -40°C to +125°C |
| Protection class | IP 67 |
| Cable Ø | Item-No |
|---|---|
| 7 – 12 mm | 7.546.500.000 |
| Housing type | Cable |
| Material housing | Stainless steel 1.4404 (AISI 316) |
| Material seals/o-rings | FKM (FPM) |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| Version | Shield | Cable Ø | Item-No |
|---|---|---|---|
| Screw | shielded | 7 – 12 mm | 7.554.500.000 |
| Screw | shielded | 11 – 17 mm | 7.554.600.000 |
| Housing type | Coupler |
| Material housing | Stainless steel 1.4404 (AISI 316) |
| Material seals/o-rings | FKM (FPM) |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| Version | Shield | Cable Ø | Item-No |
|---|---|---|---|
| Screw | shielded | 7 – 12 mm | 7.564.500.000 |
| Screw | shielded | 11 – 17 mm | 7.564.600.000 |
| Material housing | Stainless steel 1.4404 (AISI 316) |
| Material seals/o-rings | FKM (FPM) |
| Temperature range | -40°C to +125°C |
| Protection class |
IP 67, IP 69 K |
| Version | Shield | Item-No |
|---|---|---|
| Screw | unshielded | 7.601.400.000 |
| Screw | unshielded | 7.621.400.000 |
| right angled | unshielded | 7.630.400.000 |
| Crimp contact | Crimp range | Item-No | |
|---|---|---|---|
|

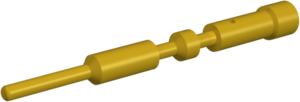

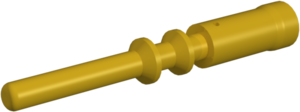

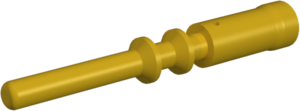

Crimp pin power 1 mm machined | 0.14 – 1 mm² | 7.010.941.001 |
|

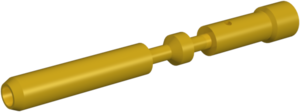

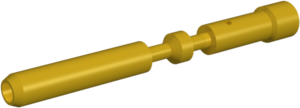

Crimp socket power 1 mm machined | 0.14 – 1 mm² | 7.010.941.002 |
|
|
Crimp pin power 1 mm machined | 0.75 – 1.5 mm² | 7.010.941.021 |
|
Crimp socket power 1 mm machined | 0.75 – 1.5 mm² | 7.010.941.022 |
|
Crimp pin power 2 mm machined | 0.75 – 2.5 mm² | 7.010.942.001 |
|
Crimp socket power 2 mm machined | 0.75 – 2.5 mm² | 7.010.942.002 |
|
Crimp pin power 2 mm machined | 2.5 – 4 mm² | 7.010.942.011 |
|
Crimp socket power 2 mm machined | 2.5 – 4 mm² | 7.010.942.012 |
All cable and coupling connectors of the standard series are also available as overmolded versions - in straight or angled design.
Overmolded solutions are manufactured according to customer specifications.
The cable type and length are specified in mutual technical agreement.
德国胡默尔Hummel航空连接器（M23 Power circular connector）
Hummel连接器代理商：上海颐品自动化科技有限公司（EPIN AUTOMATION）
